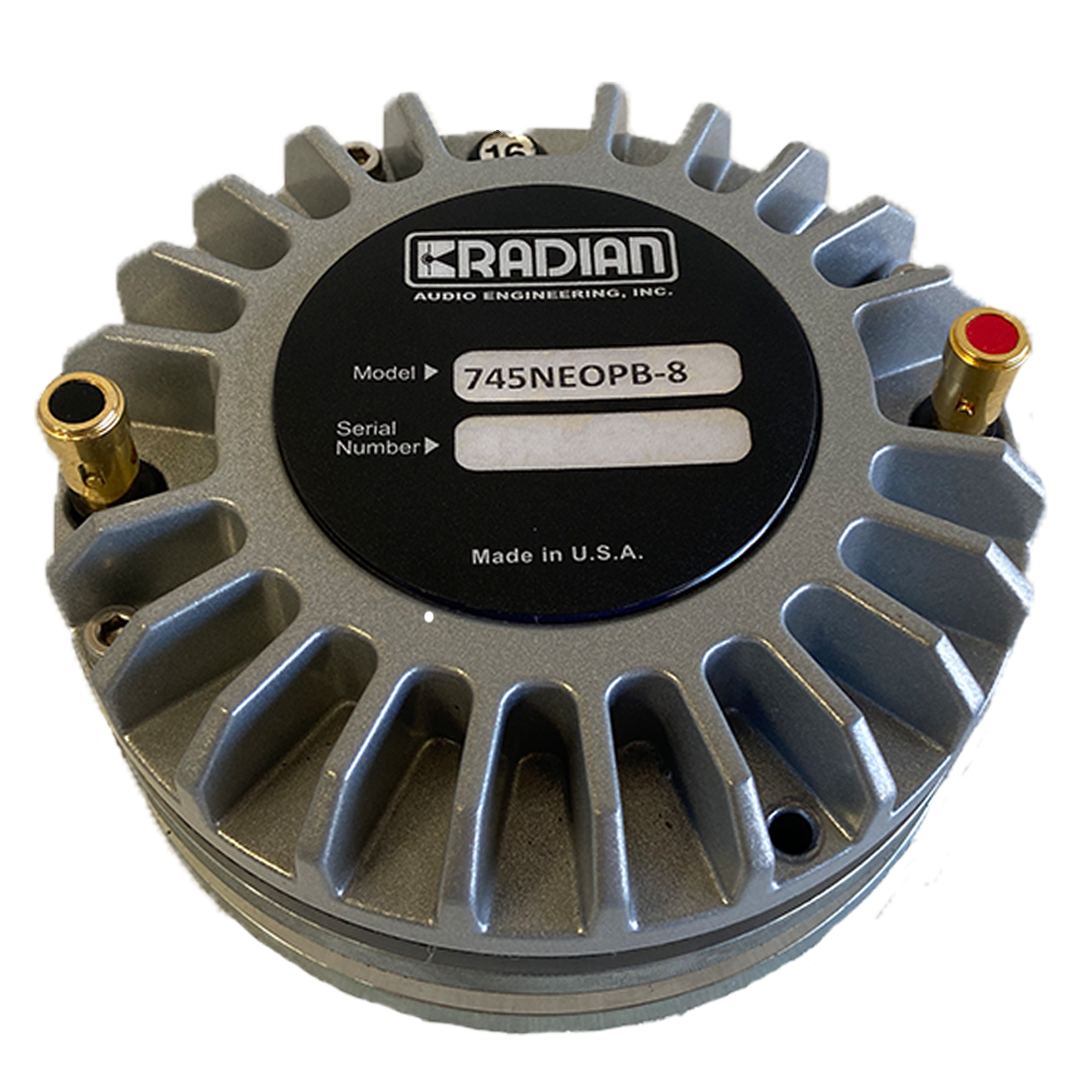

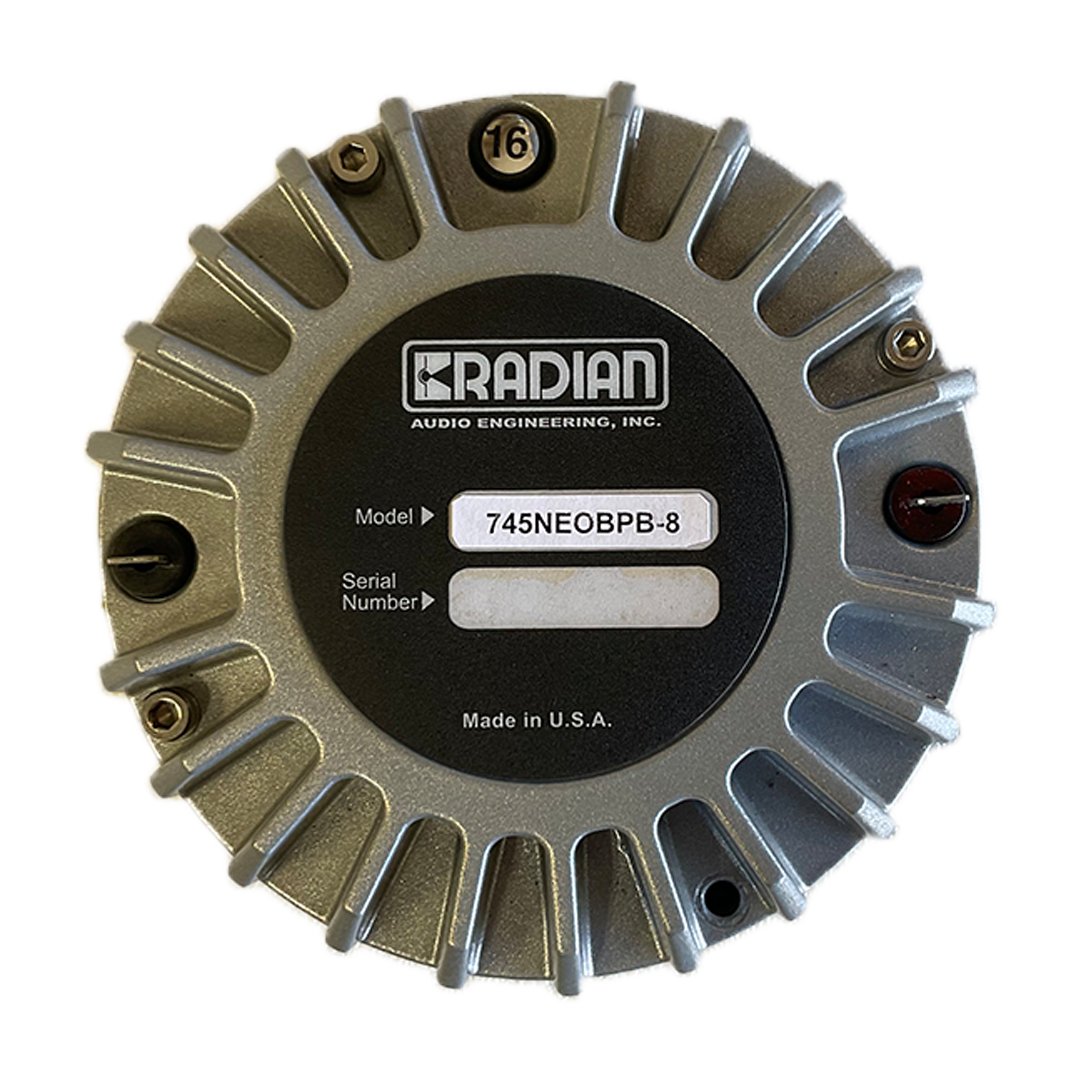

745NEO - 3″ Diaphragm, 1.4″ Exit

Our Neo drivers are built around a compact and lightweight neodymium-iron-boron permanent magnet. These neodymium based structures have superior thermal properties that result higher power handling.
  • Delivers transparent, high resolution sound for most demanding applications
  • exemplary flat response
  • extremely high sensitivity and dynamic linearity
  • withstands long term extreme stress operation with high peak factor
  • compact design, ideal for touring line arrays, premium performance systems
  • proprietary processed and hardened aerospace grade Aluminum alloy diaphragm with highest tensile strength to weight ratio guarantees long term fatigue resistance, extended HF and accurate signal peak reproduction
  • heat stabilized polymer surround ensures low distortion at high SPL and long term performance stability
  • high performance 76.3mm (3”) edge-wound ribbon wire voice coil with advanced adhesives for maximum reliability
  • 200 W continuous program power
  • self-aligning diaphragm assembly facilitates service in the field
