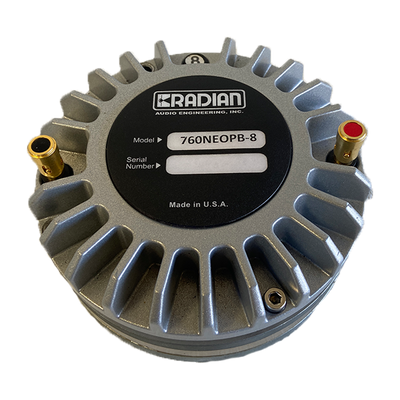

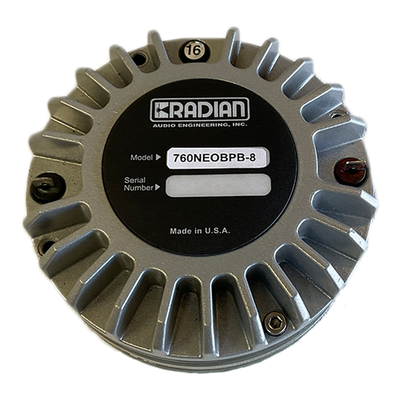

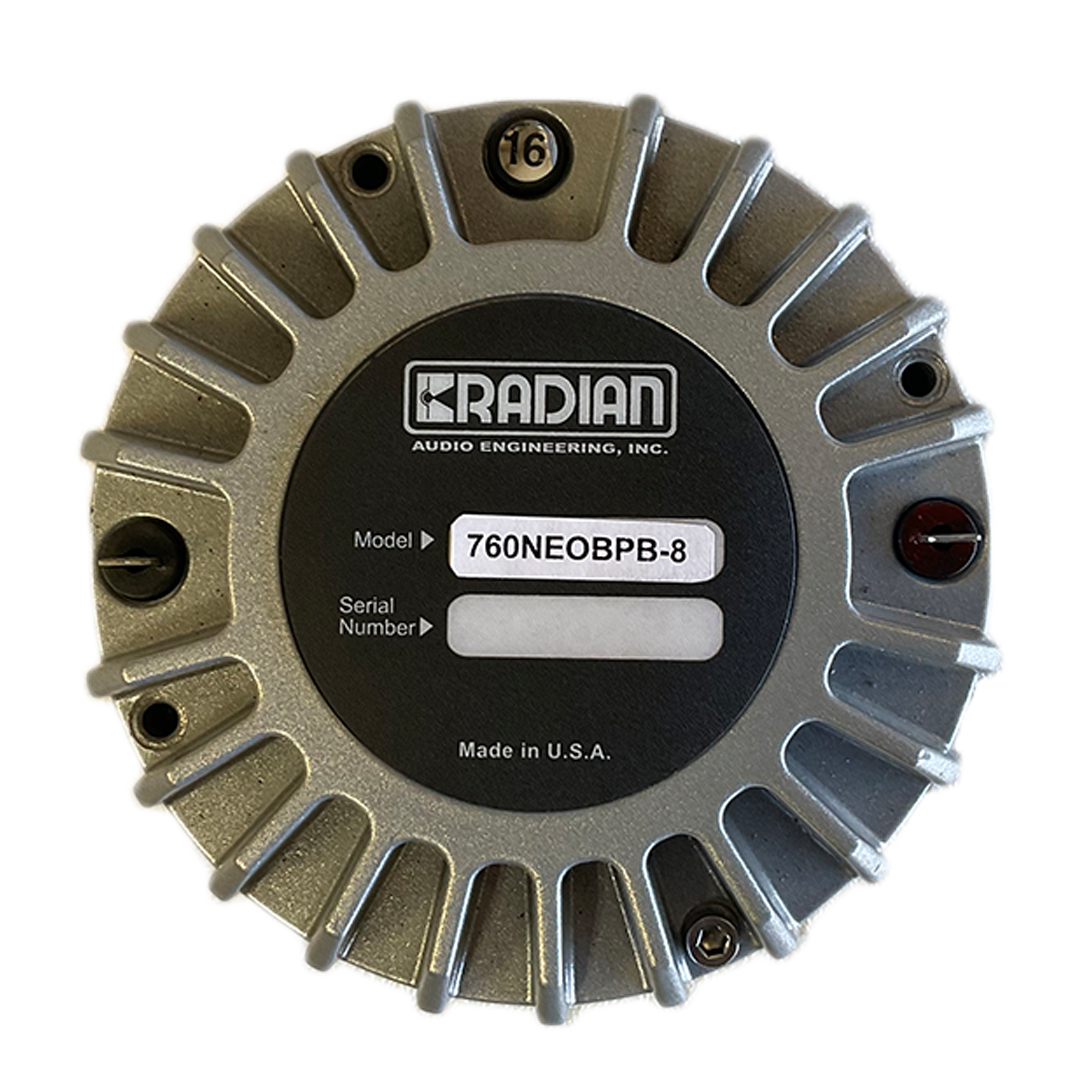

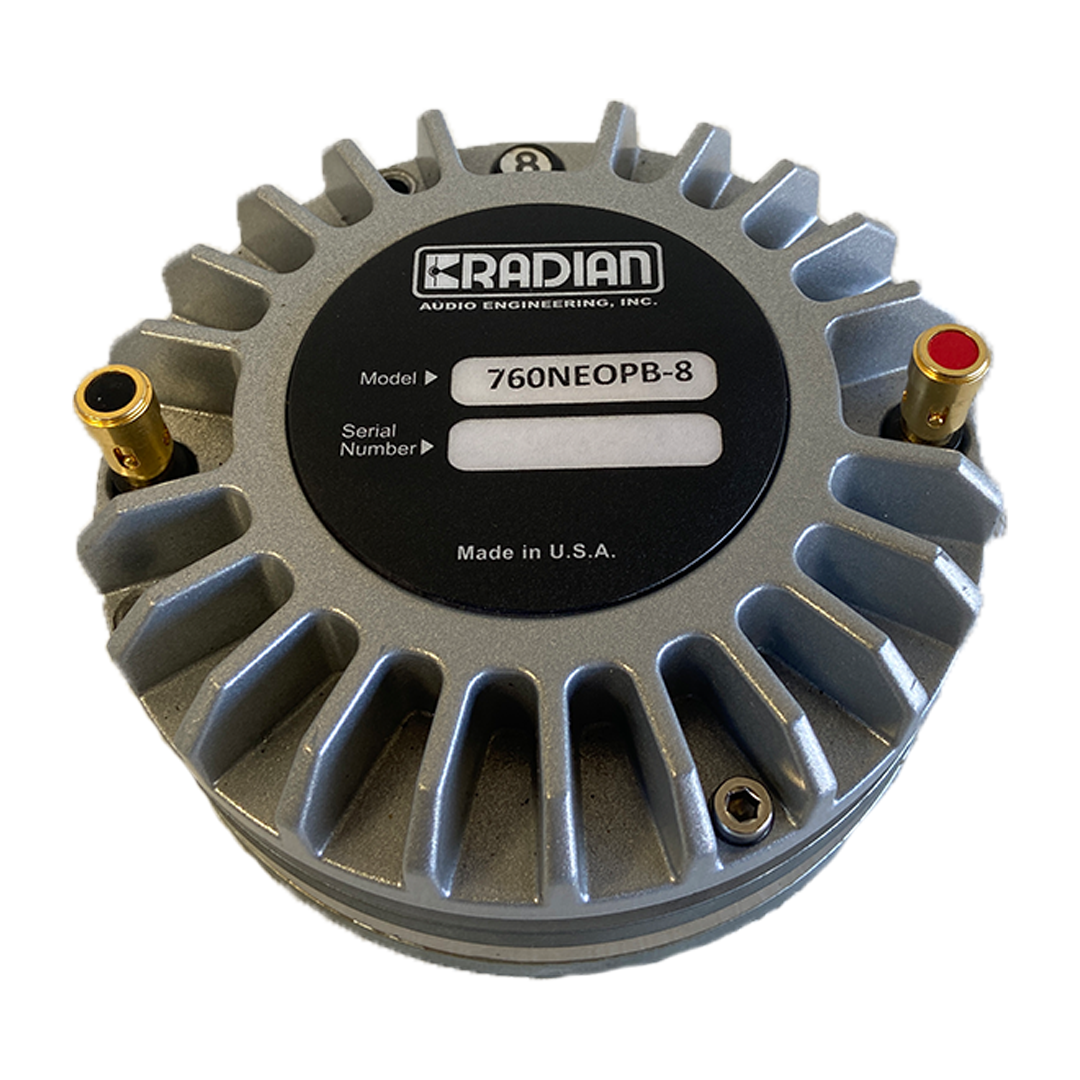

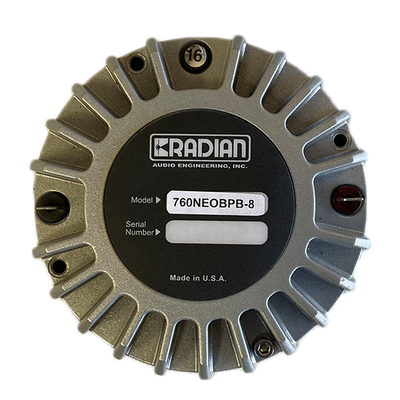

760NEO- 3" Dia, 2" Exit Neo Compression Driver

Connections
Diaphragm
Ohms
• transparent, high resolution sound • low compression ratio phasing plug and fast expanding exit adapter eliminates typical compression driver distortion • exemplary linear and extended response • withstands long term extreme stress operation with high peak factor • compact design, ideal for touring line arrays and top tier sound systems where light weight and very high SPL is required • proprietary processed and hardened aerospace grade Aluminum alloy diaphragm with highest tensile strength to weight ratio guarantees long term fatigue resistance, extended HF and accurate signal peak reproduction • heat stabilized polymer surround ensures low distortion at high SPL and long term performance stability • high performance 76.3mm (3”) edge-wound ribbon wire voice coil with advanced adhesives for maximum reliability • 200 W continuous program power • self-aligning diaphragm assembly facilitates service in the field
