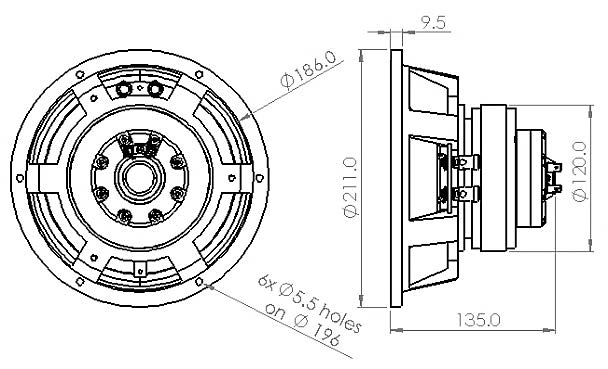

5208C - 8" Coaxial Speaker

Connections
Diaphragm
Ohms
  • Designed for high SPL applications where precise 100° conical coverage in a very compact coaxial system is required
  • Ideal for high performance pro sound applications and surround systems in premium small cinema rooms for immersive digital 3D audio formats
  • Radian proprietary aluminum alloy diaphragm with highest tensile strength to weight ratio and fatigue resistance
  • Dual magnet design with independent magnetic gaps eliminates flux modulation and dramatically reduces intermodulation distortion in HF range
  • 500 W continuous program power
  • maximum power, edge-wound ribbon copper clad aluminum voice coil on fiberglass former
  • extended to 25kHz frequency range
  • high transparency and resolution
  • optional premium XO
  • optional matching 70V transformers

Replacement diaphragm for this speaker is model no. 1450
