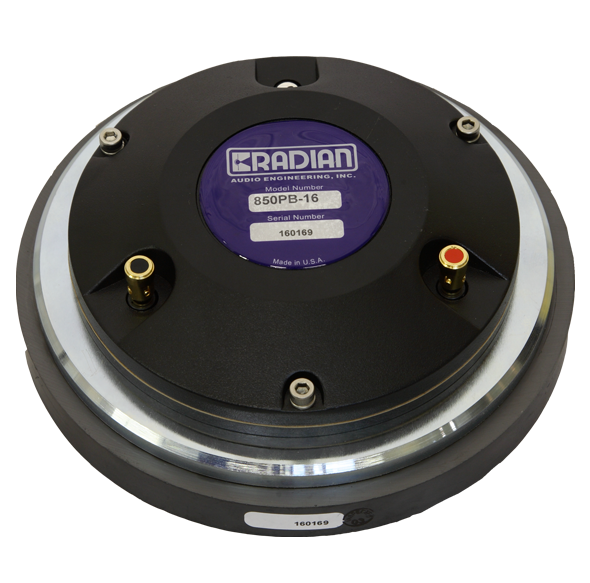

850PB - 3" Dia, 2" Exit Compression Driver

Connections
Diaphragm
Ohms
  • transparent, high resolution sound
  • low compression ratio phasing plug and optimized exit adapter eliminate typical compression driver distortion
  • designed to withstand long term extreme stress operation with high peak factor
  • ideal for touring sound, stage monitors, high performance installed and portable sound systems
  • proprietary processed and hardened aerospace grade Aluminum alloy diaphragm with highest tensile strength to weight ratio guarantees long term fatigue resistance, extended HF and accurate signal peak reproduction
  • heat stabilized polymer surround ensures low distortion at high SPL and long term performance stability
  • high performance 76.3mm (3”) edge-wound ribbon wire voice coil with advanced adhesives for maximum reliability
  • 220 W continuous program power
  • self-aligning diaphragm assembly facilitates service in the field
