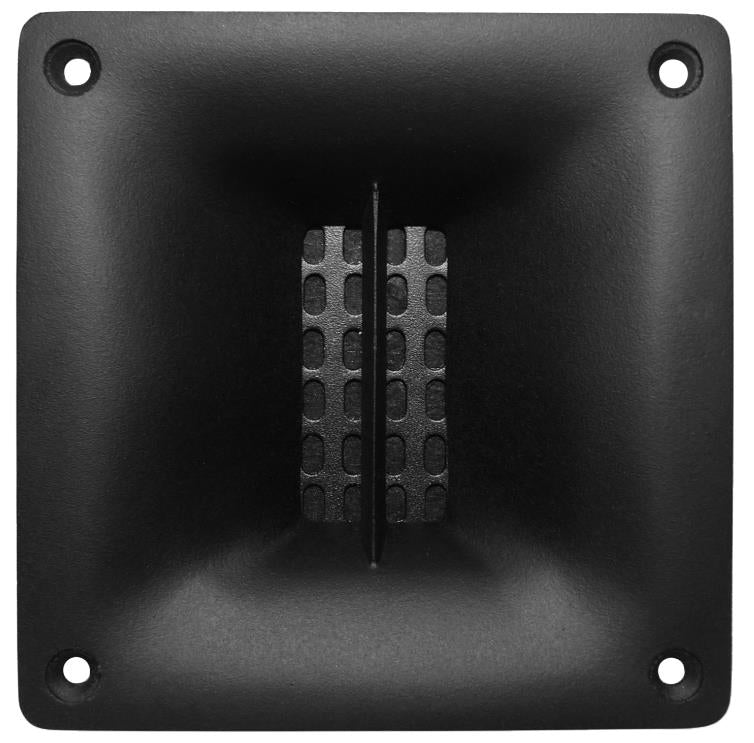

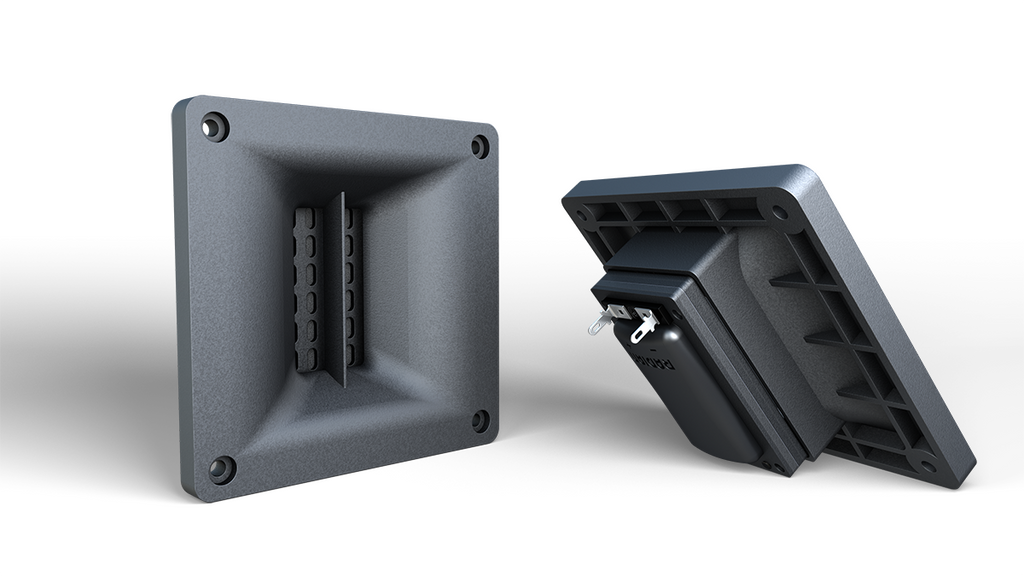

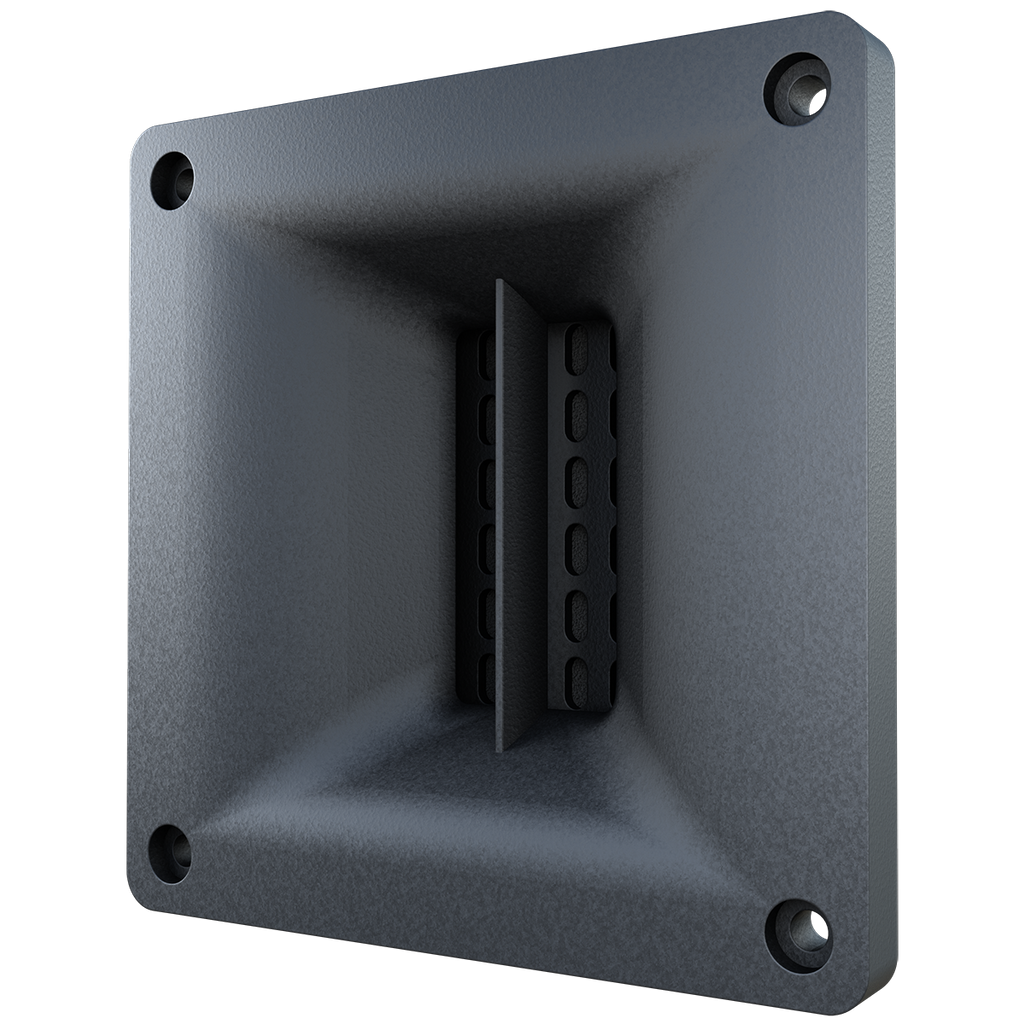

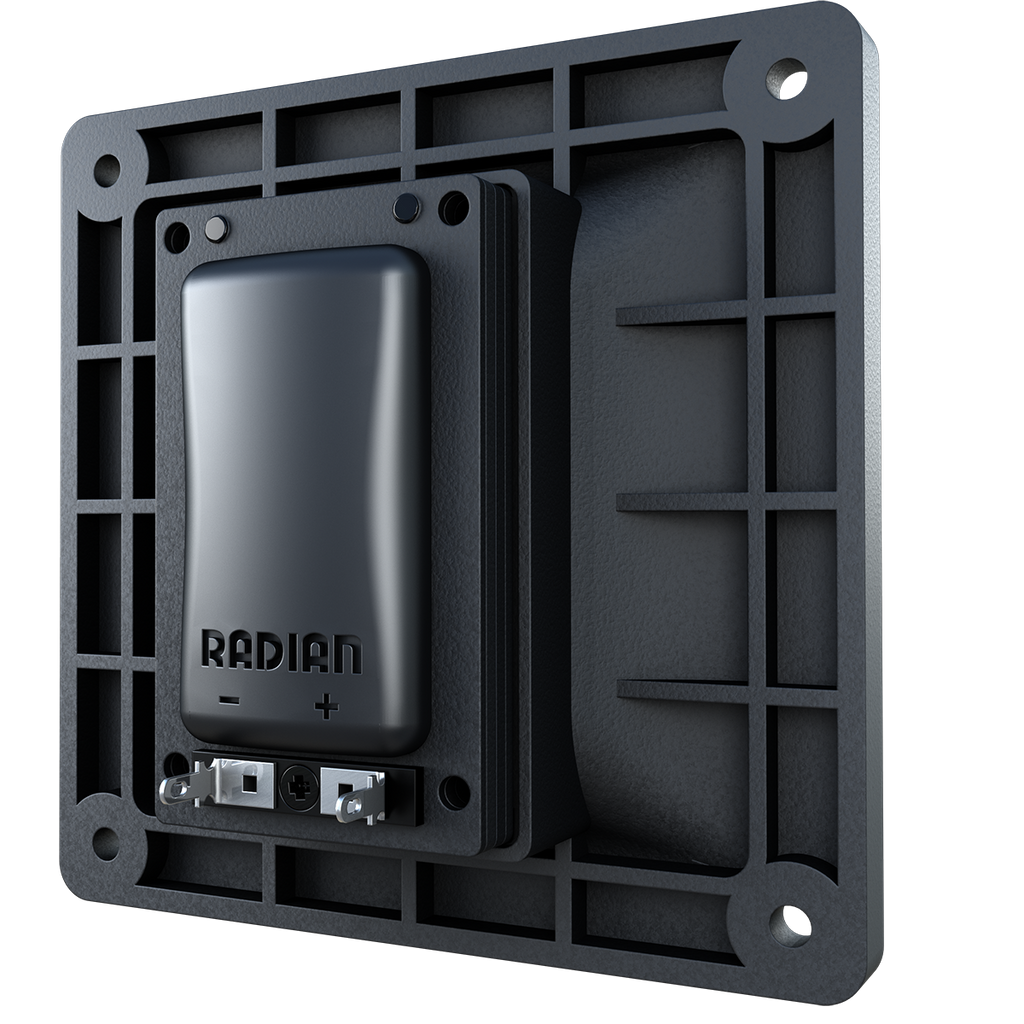

LT2.2-WG HF Waveguide
$32.00
Sale price
$32.00
Regular price
Skip to product information
LT2.2-WG HF Waveguide
$32.00
Sale price
$32.00
Regular price
• Constant Directivity Design in Horizontal Plane With Minimized Boundary Diffraction Effects
• Structurally Reinforced, High Strength Polymer With Excellent Dimensional Stability
• Rotatable at 90 Degrees
Specifications

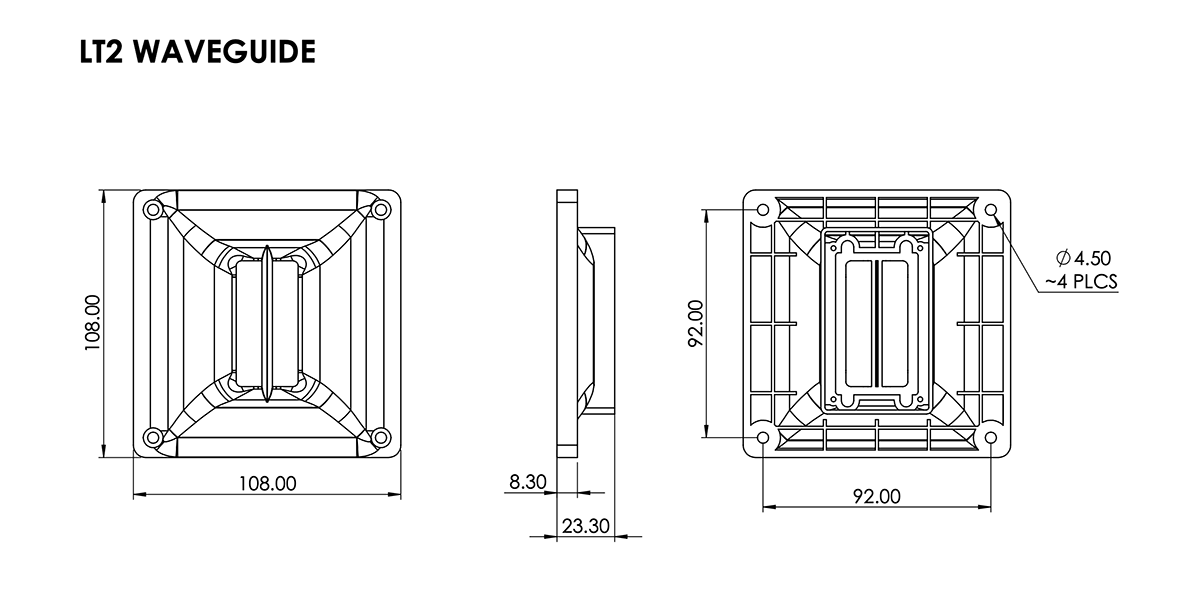

Overall size: 108x108x24.8 mm (4.25x4.25x0.98 in)
Material: Composite polymer

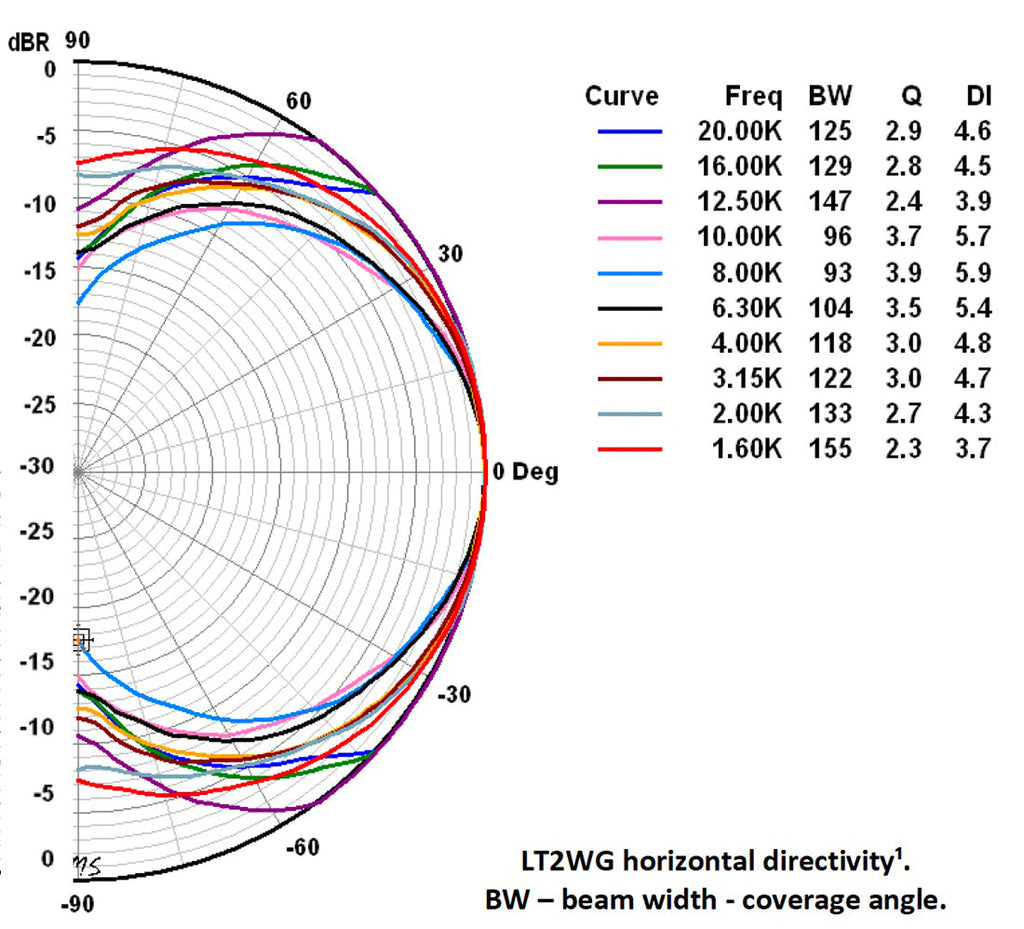

Horizontal coverage: 120°

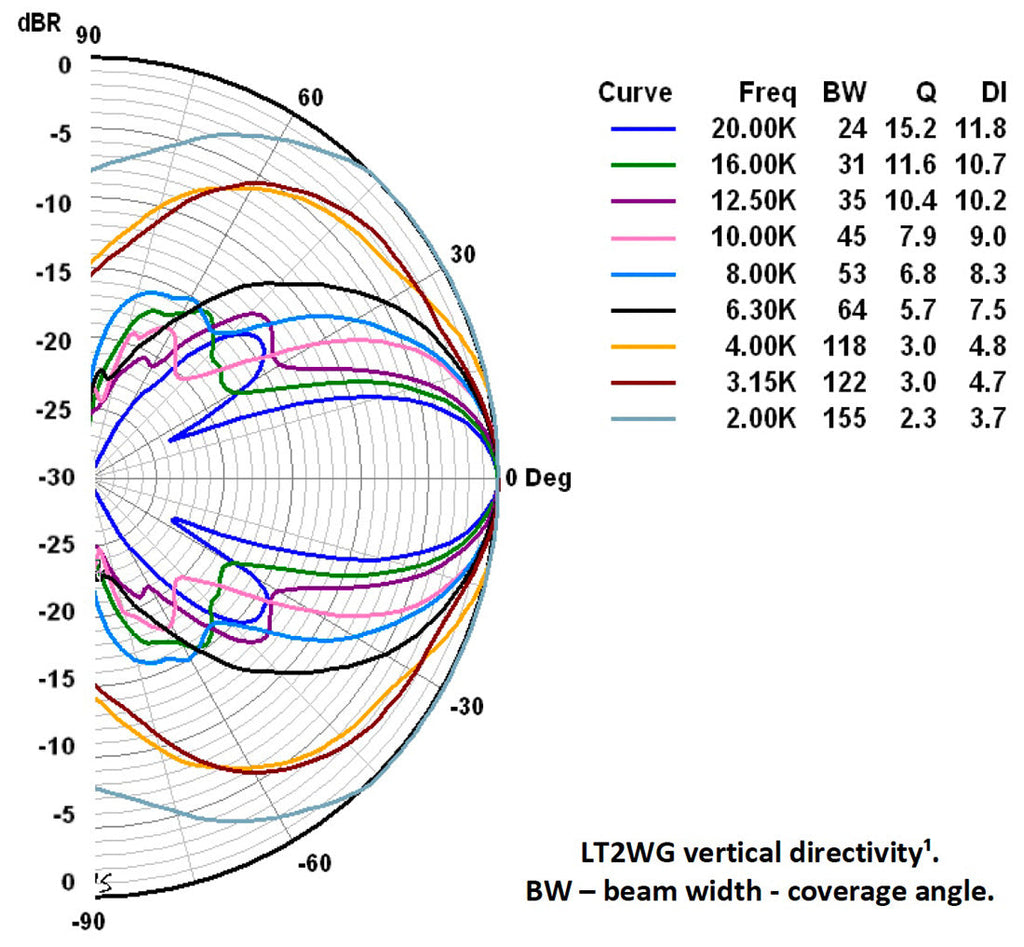

Vertical coverage: 60°
Flange thickness: 9.0 mm (0.35 in)
Net weight: 68 g (0.15 lbs.)
• Structurally Reinforced, High Strength Polymer With Excellent Dimensional Stability
• Rotatable at 90 Degrees
Specifications
Overall size: 108x108x24.8 mm (4.25x4.25x0.98 in)
Material: Composite polymer
Horizontal coverage: 120°
Vertical coverage: 60°
Flange thickness: 9.0 mm (0.35 in)
Net weight: 68 g (0.15 lbs.)
Product datasheet
Click icon below to start download
