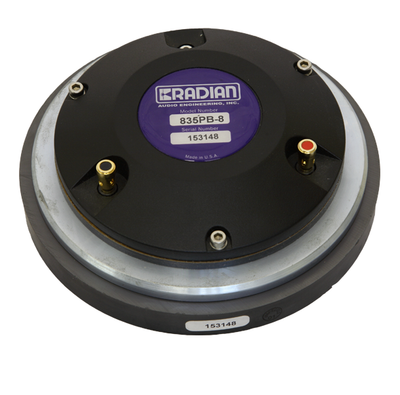

835PB - 3" Diaphragm, 1.4" Exit Compression Driver

Connections
Diaphragm
Ohms
• Distinguished by transparent, high resolution sound and minimum distortion • designed to withstand long term high stress operation with high peak factor • ideal for touring sound, stage monitors, high performance installed and portable sound systems • proprietary aerospace grade aluminum alloy diaphragm with highest tensile strength to weight ratio guarantees long term fatigue resistance, extended HF and accurate signal peak reproduction • diaphragm assembly construction with optimized damping eliminates ringing typical for other metal domes • heat stabilized polymer surround ensures low distortion at high SPL and long term performance stability • high performance 76.3mm (3”) edge-wound ribbon wire voice coil with advanced adhesives for maximum reliability • 200 W continuous program power • self-aligning diaphragm assembly facilitates service in the field
